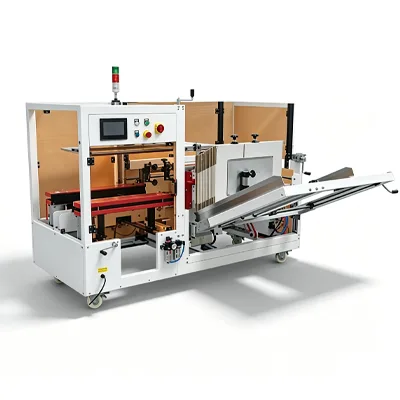

Case Erectors is used to erect carton which have been shaped automatically and use tape or hot glue as sealing materials to seal the bottom cover of carton.
A stack of corrugated blanks are knocked down and placed into the machine. The blanks are pulled out of the machine one-by-one and formed into cases. The newly formed cases are sealed at the bottom with tape or glue.
This machine can be used for widely range,such as household appliances, spinning, food, general merchandise, medicine, chemical industry, ceramics ,stoker industry and so on.
Have passed ISO9000, SGS, CE etc.
Package size: 280≤L≤600mm
160≤W≤400mm
510≤L+W≤1000mm
160≤W≤400mm
510≤L+W≤1000mm
285≤H+W/2≤620mm
Apply tape:48-72mm
Working speed:5-10boxes/min
Working speed:5-10boxes/min
Machine size: L2100 X W2050 X H1450mm
Shipping size: L2230 X W2180mm X1580mm
Power Supply:220V/380V 50Hz
Air pressure: 0.4-0.6Mpa 450NL/min
Machine weight:600kg
Shipping size: L2230 X W2180mm X1580mm
Power Supply:220V/380V 50Hz
Air pressure: 0.4-0.6Mpa 450NL/min
Machine weight:600kg
