Wrapping machine Occupying over 70% market share of China
One 20” container put in 24sets,40” container put in 50sets Standard pallet wrapping machine,the most one in the world
World-class sales/after-sales service,guarantee reply within 2hours
All high quality material,high technical standards and precise assembling,testing procedures.
Have passed ISO9000, SGS, CE etc.
| Model | K1100W |
| Wrap size (L X W) | (500-1200)mm X (500-1100)mm |
| Wrap height (max) | 2400mm |
| Turntable diameter | 1650mm |
| Turntable rotary speed | 0-12rpm adjustable by inverter |
| Turntable height | 133-150mm(base on different application) |
| Turntable weight capacity (max) | 2000Kg |
| Film carriage | Power pre-stretch system up to 250% with adjustable speed |
| Wrap efficiency | 20-40 Pallets/Hour |
| Mast(lift system) | Film carriage lift speed adjustable by inverter |
| Control system | PLC control |

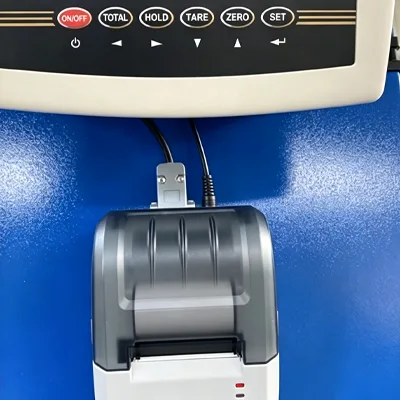

| Weighing accuracy | adjustable, max. 1/3000 |
| Total weight(max) | 470kg |
| Power/voltage | Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ |
| Machine size | 2460mm X 1650mm X 2700mm |
| Ramp | Optional |
| Top plate | Optional |
